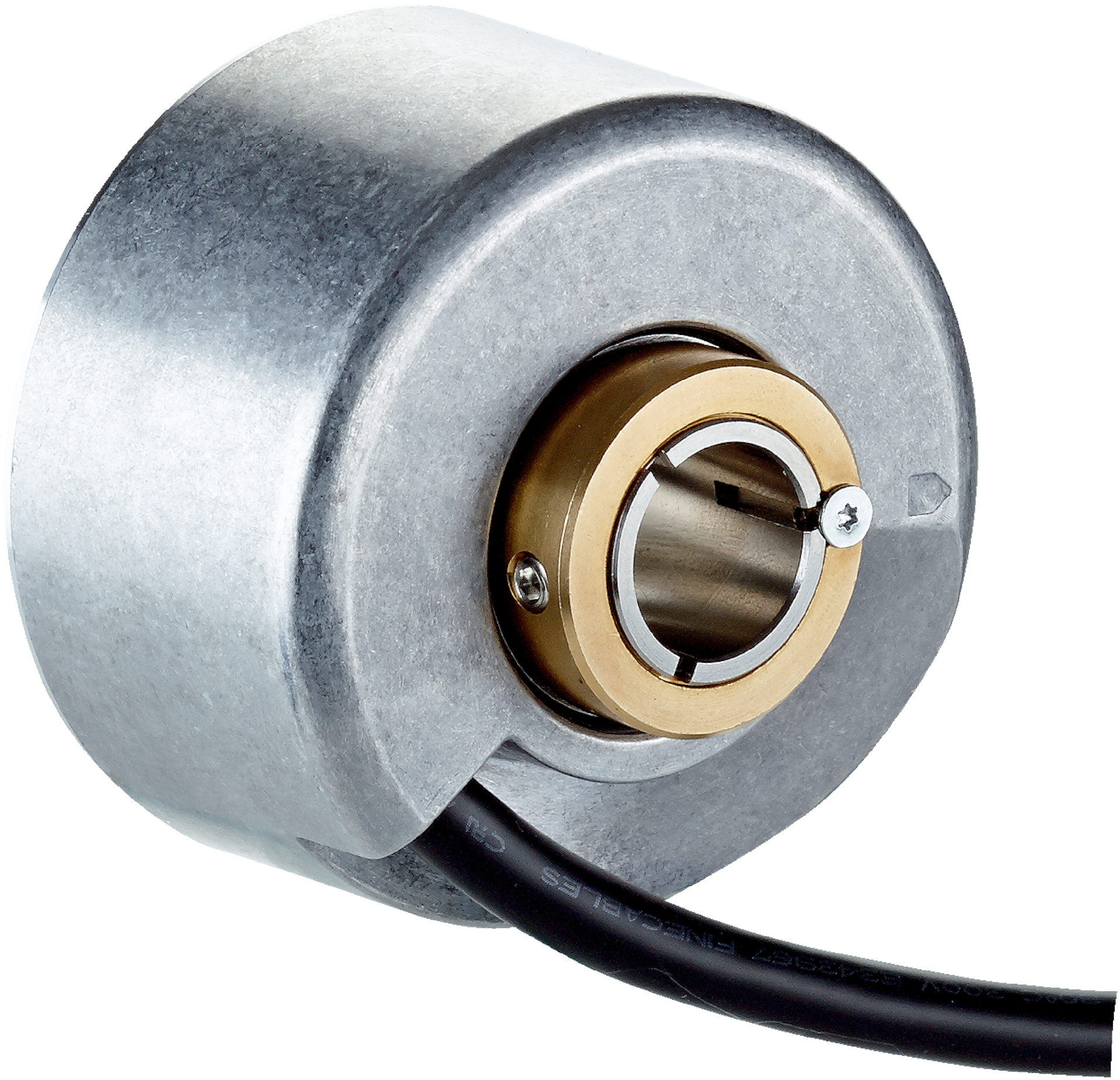

DBS60 series incremental rotary encoder, Mechanical Design: Hollow shaft with rear clamping, diameter 12 mm (isolated tree)., Resolution: 1,024 pulses per revolution (PPR)., Communication Interface: Universal power supply 4.5 V ... 30 V, compatible with TTL and HTL interfaces., Operating Speed: Up to 6,000 rpm (maximum mechanical speed 9,000 rpm)., Connection Type: Special 8-core cable, length 0.7 m, terminated with a plug M23 12-pin., Degree of Protection: IP65 on the enclosure side., Installation: Double-sided stator coupling with 63 mm hole circle.
