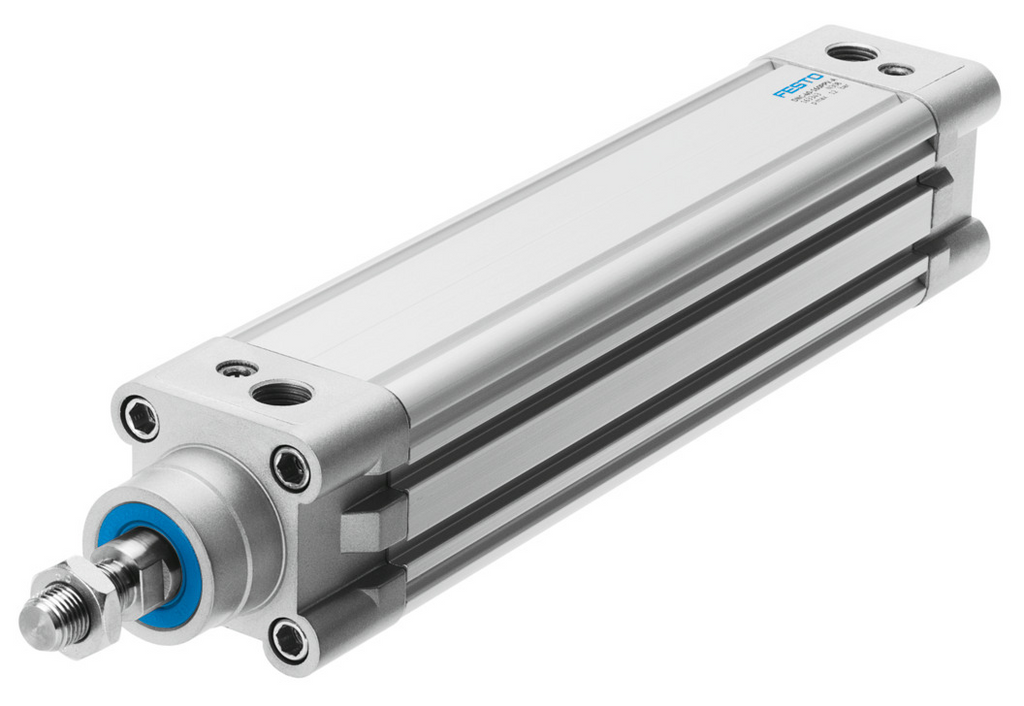

DNC series standards-based pneumatic cylinder, Piston Diameter: 40 mm., Stroke Length: 80 mm., Mode of Operation: Double-acting (pressurized air used for both extending and retracting the piston)., Cushioning: Pneumatic cushioning, adjustable at both end positions (PPV code) for smooth operation and reduced noise/impact., Position Sensing: The cylinder includes a magnet integrated into the piston (A code) for non-contact position detection via external proximity sensors., Operating Medium: Filtered, compressed air according to ISO 8573-1:2010 [7:4:4]. Lubricated operation is possible, but if introduced, it must be maintained for the component's life., Operating Pressure: 0.6 bar to 12 bar (0.06 MPa to 1.2 MPa)., Ambient Temperature: -20 °C to +80 °C (standard for DNC series, unless combined with other temperature options)., Piston Rod Thread: M12x1.25 male thread., Pneumatic Connection: G1/4 port thread.
