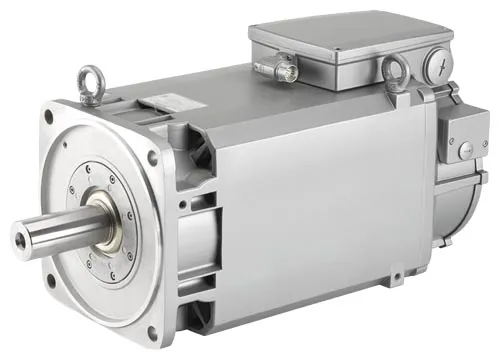

SIMOTICS M compact asynchronous motor 1500 r/min 22 kW 140 Nm 56 A 308 V 1750 r/min 25 kW 136 Nm 56 A 352 V 2000 r/min 28 kW 134 Nm 55 A 401 V 2200 r/min 30 kW 130 Nm 53 A 440 V forced ventilation; direction of air flow DE--> NDE; IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY FULL-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE LEFT SIGNAL CONNECTION D-END
