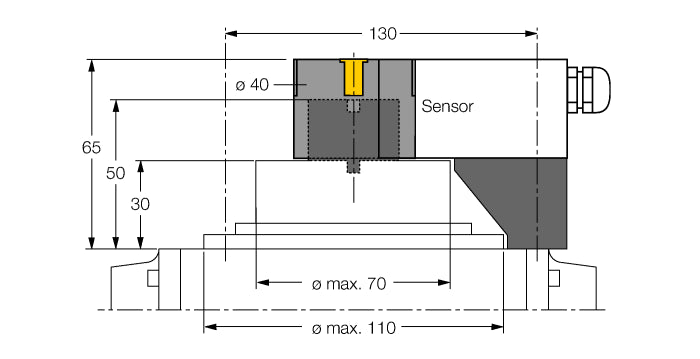

Accessories - Mounting Kit - Mounting kit for larger rotary actuators: - Ø spacer plate and snap ring: max. 110 mm - Hole pattern on flange surface: 30 x 130 mm - Connection shaft (shaft extension) height: 30 mm/Ø: max. 70 mm - Included in delivery: - 1 spacer plate Ø 30 mm (POM) - 1 spacer ring Ø 20 mm (PP-GF30) - Mounting the spacer plate: - 2 cylinder screws M5 x 12 [DIN 912‐A2] - 2 cylinder screws M5 × 45 [DIN 912-A2] - 2 lock washers A5 [DIN 137‐A2] - Mounting the puck with spacer ring: - 1 countersunk screw M6 × 45 [DIN 7991-A2] - The spacer ring has a 4 x 4 mm cross-shaped notch allowing the actuator to be mounted offset by 90°, suited for crosswise-mounted drives.
