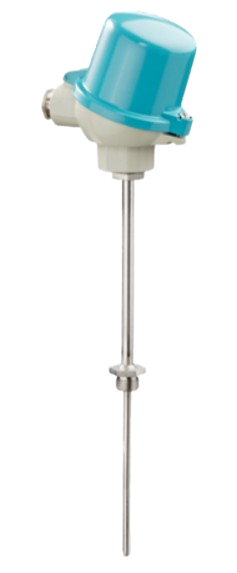

Temperature sensor in modular design, for installation in existing thermowells Material measuring insert: - for RTD: 316L/316Ti - for TC: Alloy 600 Design of the temp. sensor: For existing thermowells (with explosion protection, observe minimum thickness) Thread to the thermowell NPT 1/2" Insertion length untensioned: U = 30...100 mm Initial: 100 Diameter of the measuring tip: 6mm Extension length EU type: X = 65 mm (M = 81 mm) Alignable sensor spring at DIN measuring insert Connection head type: BC0: Aluminum; Hinged cover high; IP65 Meas. range: -50 ... 400Cel; Sensor quant., Type, Accuracy 1xPt100, Cl.AA 0 ... 150Cel
