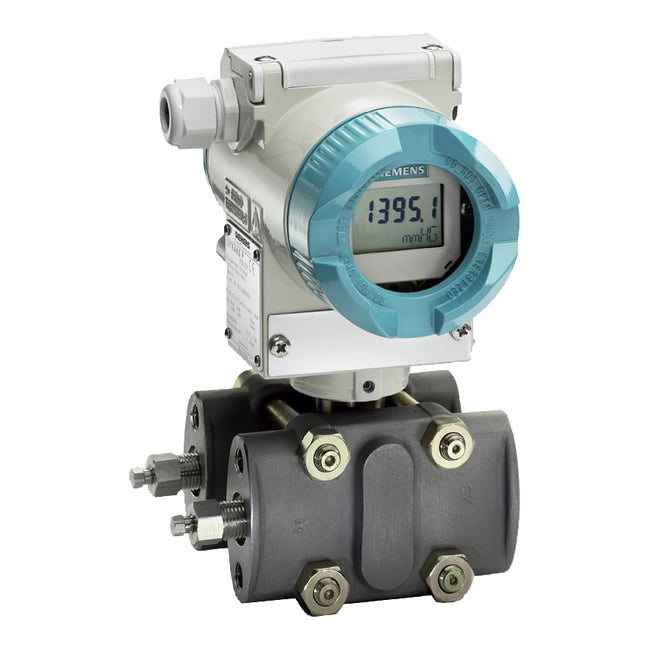

SITRANS P DS III / P410, HART, 4-20 mA transmitter for differential pressure and flow PN 32/160 gas 1/liquids 1 art. 3.3 sep, Measuring cell filling silicone normal cleaning Span: PN 160 (MWP 2320 psi): 6 to 600 mbar (2.409 to 240.9 inH2O), max. static pressure 160 bar Diaphragm stainless steel parts of measuring cell stainless steel Process connection: 1/4-18 npt mounting thread: M10 and side vent/drain Die-cast aluminium housing, process flange bolts stainless steel Standard design . Ex nA/ic - Use in Zone 2 Electric connection and cable inlet: cable gland M20 x1.5 Housing cover with window customized adjustment supplement Y21 required With steel mounting bracket Test certificate according to standard IEC 60770-2 Factory certificate to DIN 50 049-2.2 / EN 10 204-2.2 Process flanges for vertical impulse pipes (not with supplements k01 or k02) Range (linear characteristic) specify in plain text: Y01:... to ...mBar,kpa,mpa,... Adjustment digital indicator specify in plain text Y21: mBar, bar, kpa, mpa
