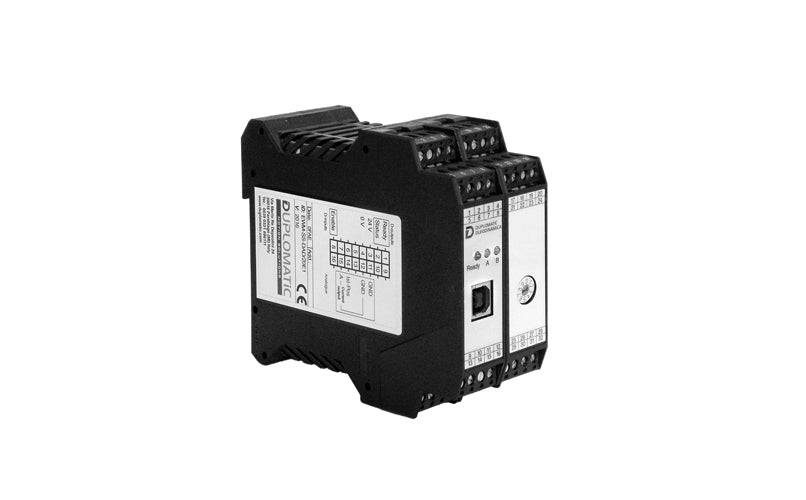

Synchronization control card for 2 to 9 -axis systems with Profibus / canbus communication interface for the position control of the axes of the axes with connecting canbus connection, within a Master / Slave synchronization system up to 9 axes, for PLC Profibus DP interface (PLC Can / Profibus interface module that can be equipped separately). The EWM-SS-DAD card manages the single axis, equipped with digital position sensor (high precision) SSI or analog. A card is required for each axis to synchronize. The synchronization control corrects the speed of the slave axes. The position error during movement will increase or reduce the speed of the slave axes in order to compensate for the synchronization error. The Can address can be selected directly from the front of the card. To configure the card, the EWMPC/20 software, can be downloaded on this page. Connection with USB port on the front. The manuals are available upon registration for the reserved area.
