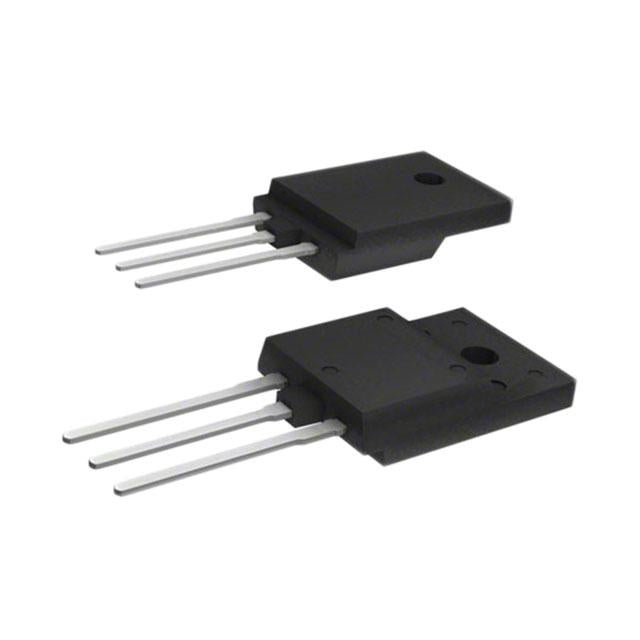

This is manufactured by Infineon Technologies. The manufacturer part number is IKA15N65ET6XKSA2. The maximum collector current includes 17 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 230µj (on), 110µj (off). Features 1.9v @ 15v, 11.5a. The maximum collector emitter breakdown voltage of the product is 650 v. Td (onoff) value of 30ns117ns. The product has -40°c ~ 175°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-220-3 full pack. Features 37 nc gate charge. It has a trr (reverse recovery time) of 69 ns. In addition, it is reach unaffected. Test condition included 400v, 11.5a, 47ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). Features an IGBT trench field stop type. With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. The product trenchstop, is a highly preferred choice for users. pg-to220-3-fp is the supplier device package value. The maximum power of the product is 45 w. Moreover, it corresponds to ika15n65, a base product number of the product. The product is designated with the ear99 code number.
