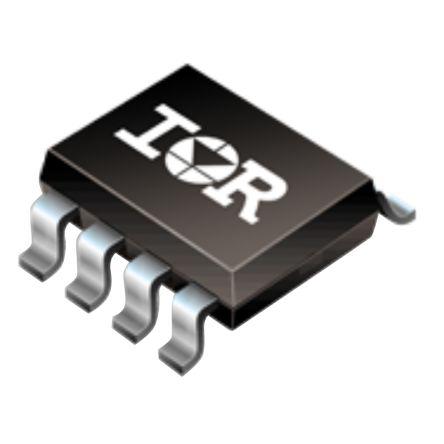

This is N-channel MOSFET 14.6 A 30 V IRF7809AV 8-Pin SO manufactured by Infineon. The manufacturer part number is IRF7809AVTRPBF. It has a maximum of 30 v drain source voltage. With a typical gate charge at Vgs includes 41 nc @ 5 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 2.5 w maximum power dissipation. The product irf7809av, is a highly preferred choice for users. It features a maximum gate source voltage of ±12 v. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. It provides up to 9 mω maximum drain source resistance. The package is a sort of so. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 14.6 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 1v. Its forward diode voltage is 1.3v . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 8 pins. The product offers single transistor configuration.
